DNS tools and Wireshark inspection

Choose the command for the question

Environment	Command	Best first observation
Windows CMD	nslookup example.test	Resolver used and returned answer
Windows CMD	ipconfig /displaydns	Windows DNS client cache
Windows CMD	ipconfig /flushdns	Clear that local client cache
PowerShell	Resolve-DnsName example.test -Type A	Typed DNS result as objects
PowerShell	Get-DnsClientCache	Local cache entries
PowerShell	Clear-DnsClientCache	Clear the local cache; success has no output
Linux/BIND tools	dig example.test A	Header and DNS message sections
Linux/BIND tools	host -t AAAA example.test	Compact typed lookup

In the simulator, these forms operate only on controlled virtual state. The values use reserved documentation namespaces and ranges.

TRY IT HERE

Ask for two DNS record types and compare the answers.

Deterministic simulator: no real shell, network or access to your files.

Suggested sequencedig example.test Adig example.test AAAA

$ …

Command

RunReset

What Wireshark is

Wireshark is a protocol analyzer. A packet capture is a recorded set of packets observed at a selected capture interface. It is not a complete record of every packet in the network: placement, interface choice, capture settings, encryption and packet loss all affect what you can see.

The current Wireshark User's Guide describes three main packet views:

1. Packet list — one summary row per captured packet.
2. Packet details — decoded protocol fields for the selected packet.
3. Packet bytes — the captured bytes corresponding to the selected data.

Capture filter is not display filter

A capture filter limits which packets are recorded. A display filter selects which already captured packets are shown. For a capture that already exists, dns is a Wireshark display filter for decoded DNS protocol traffic. Do not paste capture-filter syntax into the display-filter bar and assume it is equivalent.

Inspect a DNS exchange

1. Select the correct capture interface before capture.
2. Generate one deliberate DNS lookup.
3. Stop the capture so the evidence set stops changing.
4. Apply the display filter dns.
5. Select the query and expand its DNS details: transaction ID, flags, question name and query type.
6. Select the matching response and compare transaction ID, response flag, answer type, value and TTL.
7. Keep transport details separate from DNS meaning. A packet may use UDP or TCP; the DNS fields still describe the question and answer.

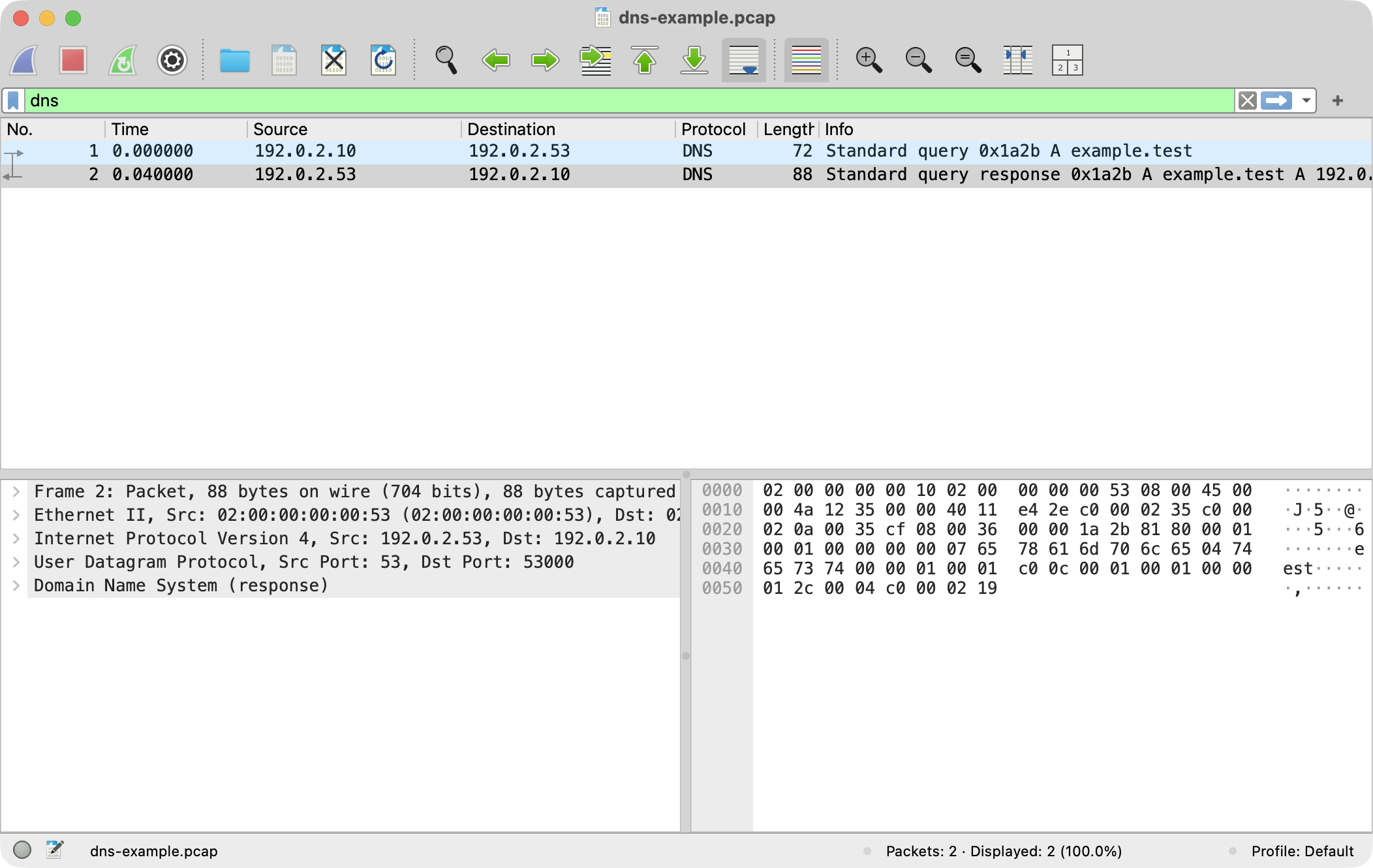

See the real interface

1. 1Display filter: dns
2. 2Packet list: query and response
3. 3Packet details: decoded fields
4. 4Packet bytes: captured data

Real Wireshark 4.6.8 screenshot on macOS. The trace uses reserved documentation addresses and no production traffic.

The screenshot is evidence of the actual software interface in Wireshark 4.6.8 on macOS. The numbered explanations are localized HTML, so the raster is not altered or mistaken for a generated UI. Select the query row to inspect the question; select the response row to inspect the answer and TTL.

Next stepDiagnose before you flush

Separate resolver, cache, answer, transport and application failures.
